Bard Parts Lookup Tool
| NS | High Pressure Switch (Flare) | 1804-0106 | S1804-0106 | $95.00 | |
| NS | Low Pressure Switch (Flare) | 1804-0107 | S1804-0107 | $69.00 | |
| NS | Low Ambient Control (Flare) | CMA-6 | $95.00 | ||

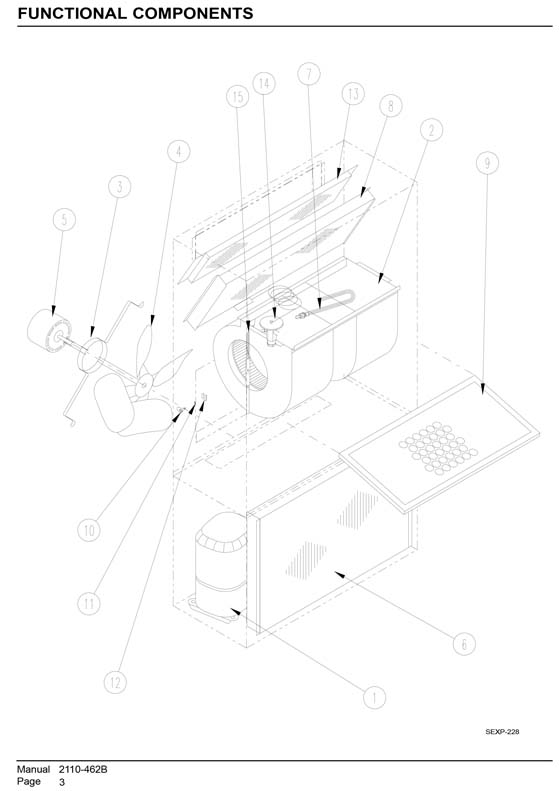

| 1 | Compressor | 8000-204 | 8000-905 | $2,192.00 | |
| 2 | Blower Assembly | S900-232 | 900-232BX | $640.00 | |
| 3 | Fan Motor Mount | 8200-001 | 8200-001BX | $94.00 | |
| 4 | Fan Blade | 5151-045 | 5151-045BX | $168.00 | |
| 5 | Condenser Motor | 8103-020 | 8103-030BX | $239.00 | |
| 6 | Condenser Coil | 5051-089 | Call | ||
| 7 | Cooling Capillary Assembly | 800-0184 | 800-0184BX | $139.00 | |
| 8 | Evaporator Coil | 5060-064 | 5060-064BX | $619.00 | |
| 9 | Air Filter 1" Throw-Away | 7004-019 | $14.00 | ||
| 9 | Air Filter 1" Washable (Optional) | 7003-031 | $144.00 | ||
| 9 | Air Filter 2" Pleated (Optional) | 7004-026 | $29.00 | ||
| 10 | 1/4 Turn Fastener | 1171-002 | Call | ||
| 11 | 1/4 Turn Retainer | 1171-024 | $3.00 | ||
| 12 | 1/4 Receptacle | 1171-023 | $5.00 |
| NS | Toggle Disconnect | 8615-067 | Call | ||
| NS | Wiring Diagram (PDF file download) | 4095-321 | - | ||

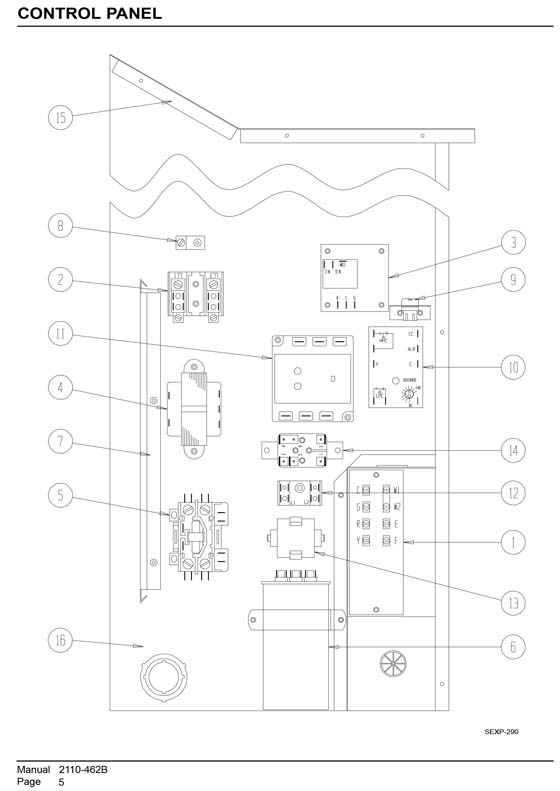

| 1 | Low Voltage Terminal Strip | 8607-020 | 8607-020BX | $19.00 | |
| 2 | Terminal Block 3 Pole | 8607-014 | 8607-014BX | $29.00 | |
| 2 | Phenolic Insulator | 8607-015 | 8607-015BX | $14.00 | |
| 3 | Blower Relay | 8201-032 | 8201-032BX | $19.00 | |
| 4 | Transformer | 8407-042 | 8407-069BX | $71.00 | |
| 5 | Compressor Contactor | 8401-002 | 8401-002BX | $60.00 | |
| 7 | Wire Shield | 135-122 | $18.00 | ||
| 8 | Ground Terminal | 8611-006 | $3.00 | ||
| 9 | 6 Pin Connector | 3000-968 | $5.00 | ||
| 10 | Compressor Control Module (Optional) | 8201-088 | 8201-176BX | $99.00 | |
| 10 | Compressor TDR (Optional) | 8201-050 | 8201-050BX | $23.00 | |
| 11 | Phase Monitor | 8201-085 | 8201-174BX | $109.00 | |
| 12 | Terminal Block (Optional) (Shown) | 8607-017 | 8607-017BX | $16.00 | |
| 13 | Start Device (PTCR) (Optional) | 8551-005 | 8551-004BX | $74.00 | |
| 14 | Alarm Relay (Optional) | 8201-062 | S8201-062 | $22.00 | |
| 15 | Control Panel Top | 117-137 | 117X137BX | $70.00 | |
| 16 | Control Panel | 117-123 | 117X123 | $57.00 |

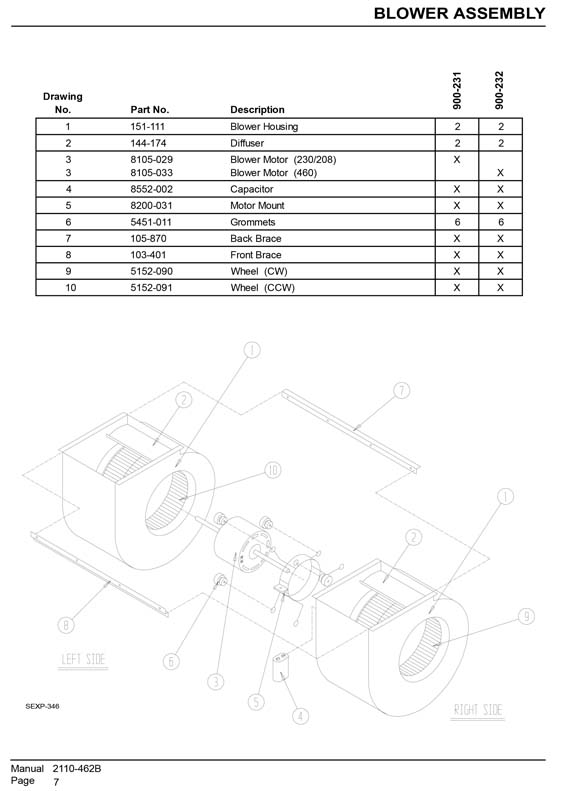

| 1 | Blower Housing | 151-111 | 151-111BX | $135.00 | |
| 2 | Diffuser | 144-174 | $7.00 | ||
| 3 | Blower Motor (460) | 8105-033 | 8105-033BX | $272.00 | |
| 4 | Capacitor | 8552-002 | 8552-002BX | $30.00 | |
| 5 | Motor Mount | 8200-031 | 8200-031BX | $57.00 | |
| 6 | Grommets | 5451-011 | $2.00 | ||
| 7 | Back Brace | 105-870 | $15.00 | ||
| 8 | Front Brace | 103-401 | $15.00 | ||
| 9 | Wheel (CW) | 5152-090 | 5152-090BX | $89.00 | |
| 10 | Wheel (CCW) | 5152-091 | 5152-091BX | $111.00 |
| Heat kit not found |
- Manufactured: December, 2005
- Parts Manual: 2110-462(B).pdf
- Wiring Diagram: 4095-321.pdf
